Module 1 - Examine OpenShift Installation
Overview
This module introduces you to the pre-installed OpenShift Container Platform environment in it’s default state. No Container-Native Storage components are in place. You may refer back to this chapter for a before-after comparison after completing Module 2 and Module 5.
There are no pre-requisites for this module.
The OpenShift Lab Environment#
Your lab environment has OpenShift Container Platform 3.6 pre-installed. It consists of:
- 1 Master node, running the master services and the router
- 3 Infra nodes, running the registry
- 6 App nodes, without any pods
The Master is the only node that’s accessible via a public IP. All CLI commands in this lab will be done from this node.
OpenShift has been configured with local authentication, the following users are defined:
| User name | Password | OpenShift privileges |
|---|---|---|
| operator | r3dh4t | cluster-admin |
| developer | r3dh4t | regular user |
Exploring the Lab configuration#
Login via the CLI#
In the previous chapter you logged on to the master node as ec2-user.
⇨ From here continue to log on to OpenShift using the oc client:
oc login -u operator
Use r3dh4t as the password.
Authentication required for https://master.lab:8443 (openshift)
Username: operator
Password:
Login successful.
You have access to the following projects and can switch between them with 'oc project <projectname>':
* default
kube-public
kube-system
logging
management-infra
openshift
openshift-infra
Using project "default".
⇨ Switch to the default namespace:
oc project default
Reviewing deployed components#
⇨ Get a general status of the components deployed in this project:
oc status
You will see that there is a router, an internal container registry and a web-console for that registry deployed:
In project default on server https://master.lab:8443
https://docker-registry-default.cloudapps.52.28.118.20.nip.io (passthrough) (svc/docker-registry)
dc/docker-registry deploys mirror.lab:5555/openshift3/ose-docker-registry:v3.6.173.0.21
deployment #1 deployed 12 minutes ago - 1 pod
svc/kubernetes - 172.30.0.1 ports 443->8443, 53->8053, 53->8053
https://registry-console-default.cloudapps.52.28.118.20.nip.io (passthrough) (svc/registry-console)
dc/registry-console deploys mirror.lab:5555/openshift3/registry-console:v3.6
deployment #1 deployed 10 minutes ago - 1 pod
svc/router - 172.30.131.155 ports 80, 443, 1936
dc/router deploys mirror.lab:5555/openshift3/ose-haproxy-router:v3.6.173.0.21
deployment #1 deployed 10 minutes ago - 1 pod
⇨ Display all available nodes in the system
oc get nodes
You should see 9 nodes in READY state:
NAME STATUS AGE VERSION infra-1.lab Ready 14m v1.6.1+5115d708d7 infra-2.lab Ready 14m v1.6.1+5115d708d7 infra-3.lab Ready 14m v1.6.1+5115d708d7 master.lab Ready,SchedulingDisabled 19m v1.6.1+5115d708d7 node-1.lab Ready 14m v1.6.1+5115d708d7 node-2.lab Ready 14m v1.6.1+5115d708d7 node-3.lab Ready 14m v1.6.1+5115d708d7 node-4.lab Ready 14m v1.6.1+5115d708d7 node-5.lab Ready 14m v1.6.1+5115d708d7 node-6.lab Ready 14m v1.6.1+5115d708d7
⇨ A slight variant of that command will show us some tags (called labels):
oc get nodes --show-labels
You should see that 3 node have the label role=infra applied whereas the other 6 have role=apps set. The master node has scheduling disabled so it is not burdened with additional workloads.
NAME STATUS AGE VERSION LABELS infra-1.lab Ready 21m v1.6.1+5115d708d7 beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,kubernetes.io/hostname=infra-1.lab,role=infra infra-2.lab Ready 21m v1.6.1+5115d708d7 beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,kubernetes.io/hostname=infra-2.lab,role=infra infra-3.lab Ready 21m v1.6.1+5115d708d7 beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,kubernetes.io/hostname=infra-3.lab,role=infra master.lab Ready,SchedulingDisabled 26m v1.6.1+5115d708d7 beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,kubernetes.io/hostname=master.lab,role=master node-1.lab Ready 21m v1.6.1+5115d708d7 beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,glusterfs=storage-host,kubernetes.io/hostname=node-1.lab,role=app node-2.lab Ready 21m v1.6.1+5115d708d7 beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,glusterfs=storage-host,kubernetes.io/hostname=node-2.lab,role=app node-3.lab Ready 21m v1.6.1+5115d708d7 beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,glusterfs=storage-host,kubernetes.io/hostname=node-3.lab,role=app node-4.lab Ready 21m v1.6.1+5115d708d7 beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,kubernetes.io/hostname=node-4.lab,role=app node-5.lab Ready 21m v1.6.1+5115d708d7 beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,kubernetes.io/hostname=node-5.lab,role=app node-6.lab Ready 21m v1.6.1+5115d708d7 beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,kubernetes.io/hostname=node-6.lab,role=app
Review Registry configuration#
⇨ Examine the configuration of the OpenShift internal registry:
oc describe deploymentconfig/docker-registry
There is a single instance of the registry because there is so far no shared storage in this environment:
Name: docker-registry
Namespace: default
Created: 16 minutes ago
Labels: docker-registry=default
Annotations: <none>
Latest Version: 1
Selector: docker-registry=default
Replicas: 1
Triggers: Config
Strategy: Rolling
Template:
Pod Template:
Labels: docker-registry=default
Service Account: registry
Containers:
registry:
Image: mirror.lab:5555/openshift3/ose-docker-registry:v3.6.173.0.21
Port: 5000/TCP
Requests:
cpu: 100m
memory: 256Mi
Liveness: http-get https://:5000/healthz delay=10s timeout=5s period=10s #success=1 #failure=3
Readiness: http-get https://:5000/healthz delay=0s timeout=5s period=10s #success=1 #failure=3
Environment:
REGISTRY_HTTP_ADDR: :5000
REGISTRY_HTTP_NET: tcp
REGISTRY_HTTP_SECRET: hrwyZRlJiB48Ep0XI5qER2KgJFEW8wE1bxz7jJrSgiU=
REGISTRY_MIDDLEWARE_REPOSITORY_OPENSHIFT_ENFORCEQUOTA: false
OPENSHIFT_DEFAULT_REGISTRY: docker-registry.default.svc:5000
REGISTRY_HTTP_TLS_KEY: /etc/secrets/registry.key
REGISTRY_HTTP_TLS_CERTIFICATE: /etc/secrets/registry.crt
Mounts:
/etc/secrets from registry-certificates (rw)
/registry from registry-storage (rw)
Volumes:
registry-storage:
Type: EmptyDir (a temporary directory that shares a pod's lifetime)
Medium:
registry-certificates:
Type: Secret (a volume populated by a Secret)
SecretName: registry-certificates
Optional: false
Deployment #1 (latest):
Name: docker-registry-1
Created: 16 minutes ago
Status: Complete
Replicas: 1 current / 1 desired
Selector: deployment=docker-registry-1,deploymentconfig=docker-registry,docker-registry=default
Labels: docker-registry=default,openshift.io/deployment-config.name=docker-registry
Pods Status: 1 Running / 0 Waiting / 0 Succeeded / 0 Failed
Events:
FirstSeen LastSeen Count From SubObjectPath Type Reason Message
--------- -------- ----- ---- ------------- -------- ------ -------
16m 16m 1 deploymentconfig-controller Normal DeploymentCreatedCreated new replication controller "docker-registry-1" for version 1
The highlighted lines above show that the OpenShift internal registry is currently using storage of emptyDir to store container images that developers and build process create in OpenShift.
Note
emptyDir is the simplest type of storage available in OpenShift and offers no redundancy, because it is just backed by the local filesystem of the host the mounting pod is running on.
More importantly this storage cannot be shared by multiple pods on different hosts and is by design ephemeral.
This prevents the registry from being scaled out and you will loose all the data should the registry pod experience problems and needs to be restarted, or it’s configuration is altered and a new instance is deployed.
Clearly you cannot run like this in production. In Module 5 you will see how we can provide proper storage for the registry.
Absence of Logging and Metrics services#
In this deployment OpenShift has been deployed without Logging and Metrics services.
⇨ Verify there are no Logging services currently deployed:
oc get all -n logging
Log aggregation components will normally be deployed in the logging namespace. Right now there should be nothing:
No resources found.
⇨ Similarly note that there are no Metrics/monitoring components deployed either:
oc get all -n openshift-infra
For operating OpenShift in production environments these services however are very valuable. By nature they do not need shared storage like CNS can provide. They however do benefit from the scale-out capabilities of CNS which typically offers capacity beyond what’s available in a single infrastructure node - these nodes will run logging and Metrics components in OpenShift.
Although not supported until the official release of CNS 3.6, in Module 5 you will get a general idea of how Logging and Metrics are deployed with CNS.
Login via the Web UI#
Lastly, you can also review the environment by logging on to the Web UI of OpenShift. You can retrieve the URL from this lab environments user interface as described in the Overview section section.

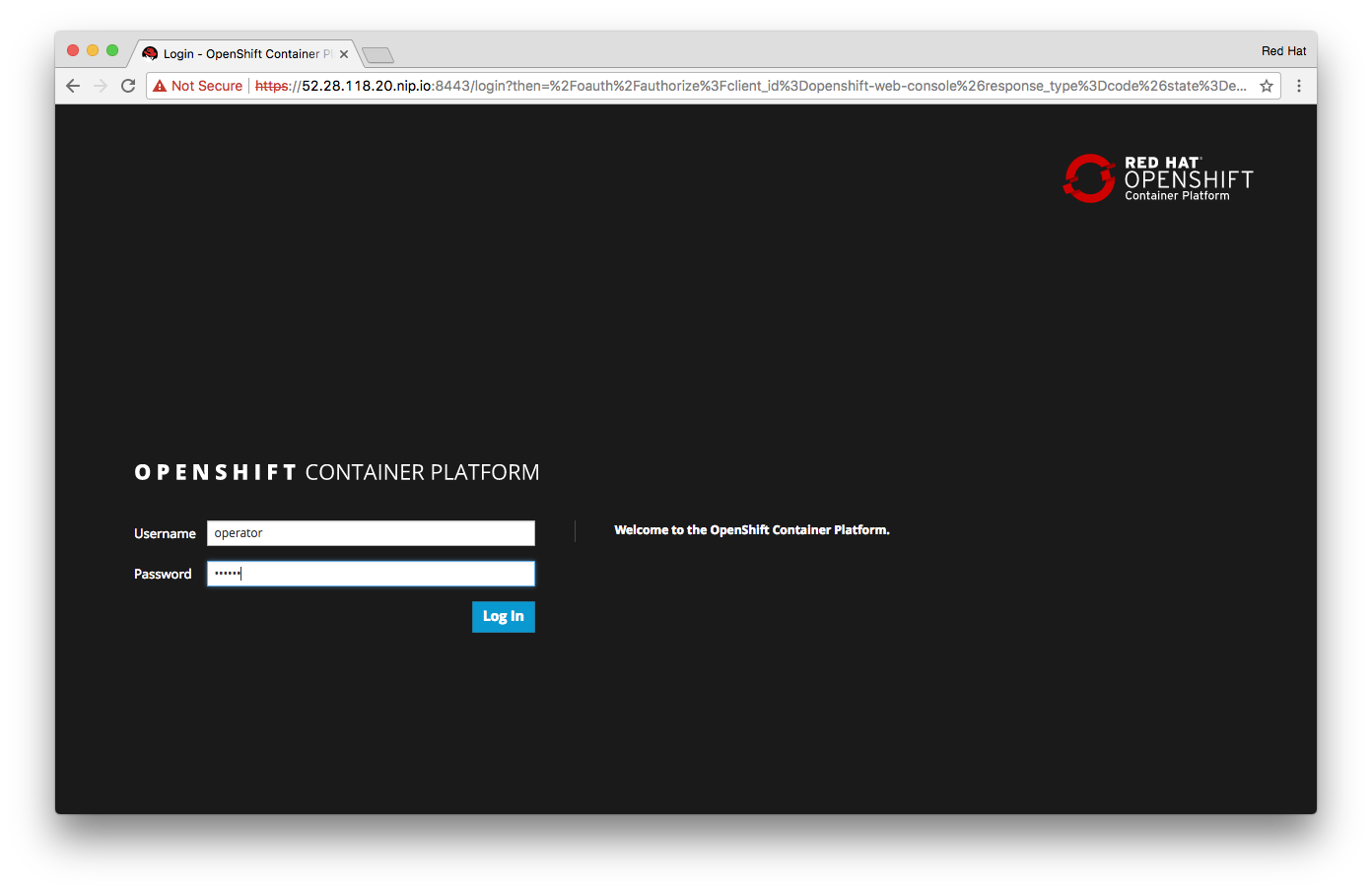

⇨ Point your browser to the URL and log in as user operator with password r3dh4t:
(click on the screenshot for better resolution)
When successful you should see the default projects/namespaces that come with a standard OpenShift installation.
