Module 5 - Persistent Storage for Infrastructure
Overview
In this module you will learn how to use Container-Native Storage to serve storage for OpenShift internal infrastructure.
This module does not have any pre-requisites.
OpenShift Registry on CNS#
The Registry in OpenShift is used to store all images that result of Source-to-Image deployments as well as custom container images.
It runs as one or more containers in specific Infrastructure Nodes or Master Nodes in OpenShift.
As explorerd in Module 1, by default the registry uses a hosts local storage (emptyDir) which makes it prone to outages. To avoid such outages the storage needs to be persistent and shared in order to survive Registry pod restarts and scale-out.
What we want to achieve is a setup like depicted in the following diagram:
This can be achieved with CNS simply by making the registry pods refer to a PVC in access mode RWX based on CNS.
Before OpenShift Container Platform 3.6 this had to be done manually on an existing CNS cluster.
With openshift-ansible you now have this setup task automated. The playbooks that implement this will deploy a separate CNS cluster, preferably on the Infrastructure Nodes, create a PVC and update the Registry DeploymentConfig to mount the associated PV which is where container images will then be stored.
Important
This method will be disruptive. All data stored in the registry so far will become unavailable.
Migration scenarios exist but are beyond the scope of this lab.
⇨ Review the openshift-ansible inventory file in /etc/ansible/ocp-with-glusterfs-registry that has been prepared in your environment:
/etc/ansible/ocp-with-glusterfs-registry:
[OSEv3:children] masters nodes glusterfs_registry [OSEv3:vars] deployment_type=openshift-enterprise containerized=true openshift_image_tag=v3.6.173.0.21 openshift_master_identity_providers=[{'name': 'htpasswd', 'login': 'true', 'challenge': 'true', 'kind': 'HTPasswdPasswordIdentityProvider', 'filename': '/etc/origin/master/htpasswd'}] openshift_master_htpasswd_users={'developer': '$apr1$bKWroIXS$/xjq07zVg9XtH6/VKuh6r/','operator': '$apr1$bKWroIXS$/xjq07zVg9XtH6/VKuh6r/'} openshift_master_default_subdomain='cloudapps.52.59.170.248.nip.io' openshift_router_selector='role=master' openshift_registry_selector='role=infra' openshift_hosted_registry_storage_kind=glusterfs openshift_storage_glusterfs_registry_storageclass=true openshift_metrics_install_metrics=false openshift_metrics_hawkular_hostname="hawkular-metrics.{{ openshift_master_default_subdomain }}" openshift_metrics_cassandra_storage_type=pv openshift_metrics_cassandra_pvc_size=10Gi openshift_hosted_logging_deploy=false openshift_logging_es_pvc_size=10Gi openshift_logging_es_pvc_dynamic=true openshift_storage_glusterfs_image=rhgs3/rhgs-server-rhel7 openshift_storage_glusterfs_version=3.2.0-7 openshift_storage_glusterfs_heketi_image=rhgs3/rhgs-volmanager-rhel7 openshift_storage_glusterfs_heketi_version=3.2.0-11 openshift_storage_glusterfs_registry_namespace=infra-storage openshift_docker_additional_registries=mirror.lab:5555 openshift_docker_insecure_registries=mirror.lab:5555 oreg_url=mirror.lab:5555/openshift3/ose-${component}:${version} openshift_examples_modify_imagestreams=false openshift_disable_check=disk_availability,memory_availability [masters] master.lab openshift_public_hostname=52.59.170.248.nip.io openshift_hostname=master.lab openshift_ip=10.0.1.100 openshift_public_ip=52.59.170.248 [masters:vars] openshift_schedulable=true openshift_node_labels="{'role': 'master'}" [nodes] master.lab openshift_public_hostname=52.59.170.248.nip.io openshift_hostname=master.lab openshift_ip=10.0.1.100 openshift_public_ip=52.59.170.248 infra-1.lab openshift_hostname=infra-1.lab openshift_ip=10.0.2.101 openshift_node_labels="{'role': 'infra'}" infra-2.lab openshift_hostname=infra-2.lab openshift_ip=10.0.3.102 openshift_node_labels="{'role': 'infra'}" infra-3.lab openshift_hostname=infra-3.lab openshift_ip=10.0.4.103 openshift_node_labels="{'role': 'infra'}" node-1.lab openshift_hostname=node-1.lab openshift_ip=10.0.2.201 openshift_node_labels="{'role': 'app'}" node-2.lab openshift_hostname=node-2.lab openshift_ip=10.0.3.202 openshift_node_labels="{'role': 'app'}" node-3.lab openshift_hostname=node-3.lab openshift_ip=10.0.4.203 openshift_node_labels="{'role': 'app'}" node-4.lab openshift_hostname=node-4.lab openshift_ip=10.0.2.204 openshift_node_labels="{'role': 'app'}" node-5.lab openshift_hostname=node-5.lab openshift_ip=10.0.3.205 openshift_node_labels="{'role': 'app'}" node-6.lab openshift_hostname=node-6.lab openshift_ip=10.0.4.206 openshift_node_labels="{'role': 'app'}" [glusterfs_registry] infra-1.lab glusterfs_ip=10.0.2.101 glusterfs_zone=1 glusterfs_devices='[ "/dev/xvdc" ]' infra-2.lab glusterfs_ip=10.0.3.102 glusterfs_zone=2 glusterfs_devices='[ "/dev/xvdc" ]' infra-3.lab glusterfs_ip=10.0.4.103 glusterfs_zone=3 glusterfs_devices='[ "/dev/xvdc" ]'
The highlighted lines indicate the vital options in the inventory file to instruct openshift-ansible to deploy this setup.
Hosts in the [glusterfs_registry] group will run the CNS cluster specifically created for OpenShift Infrastructure. Just like in Module 2, each host gets specific information about the free block device to use for CNS and the failure zone it resides in (the infrastructure nodes are also hosted in 3 different Availability Zones)
The option openshift_hosted_registry_storage_kind=glusterfs will cause the registry to re-deployed with a PVC served by this cluster.
⇨ First ensure that from an Ansible-perspective the required nodes are reachable
ansible -i /etc/ansible/ocp-with-glusterfs-registry glusterfs_registry -m ping
All 3 OpenShift infrastructure nodes should respond:
infra-3.lab | SUCCESS => {
"changed": false,
"ping": "pong"
}
infra-1.lab | SUCCESS => {
"changed": false,
"ping": "pong"
}
infra-2.lab | SUCCESS => {
"changed": false,
"ping": "pong"
}
⇨ Enable the Master to be schedulable:
oadm manage-node master.lab --schedulable=true
Why does the master need to be schedulable?
This is a very simple lab environment :)
There is no sophisticated external load-balancing across the infrastructure nodes in place.
That’s why the OpenShift router will run on the master node. The router will get re-deployed when executing the following playbook.
So making the master accept pods again we ensure the re-deployed router finds it’s place again.
⇨ Run the CNS registry playbook that ships with openshift-ansible:
ansible-playbook -i /etc/ansible/ocp-with-glusterfs-registry \ /usr/share/ansible/openshift-ansible/playbooks/byo/openshift-glusterfs/registry.yml
⇨ Disable scheduling on the Master again:
oadm manage-node master.lab --schedulable=false
This will take about 6-7 minutes to complete.
Important
As in Module 2, executing the playbook in byo/openshift-glusterfs/registry.yml directly post-deployment is not supported in production as of yet. Special care has been taken in this lab so that it works here.
This will change in one of the next releases of openshift-ansible.
The playbook should succeed without any failures. After it completes you have a Registry that uses CNS to store container images. It has automatically been scaled to 3 pods for high availability too.
⇨ Log in as operator in the default namespace
oc login -u operator -n default
⇨ Verify a new version of the registry’s DeploymentConfig is running:
oc get deploymentconfig/docker-registry
It should say:
NAME REVISION DESIRED CURRENT TRIGGERED BY docker-registry 2 1 1 config
⇨ You can review the details and see how the PVC backs the registry by executing this command
oc describe deploymentconfig/docker-registry
Name: docker-registry
Namespace: default
Created: 42 minutes ago
Labels: docker-registry=default
Annotations: <none>
Latest Version: 2
Selector: docker-registry=default
Replicas: 3
Triggers: Config
Strategy: Rolling
Template:
Pod Template:
Labels: docker-registry=default
Service Account: registry
Containers:
registry:
Image: mirror.lab:5555/openshift3/ose-docker-registry:v3.6.173.0.21
Port: 5000/TCP
Requests:
cpu: 100m
memory: 256Mi
Liveness: http-get https://:5000/healthz delay=10s timeout=5s period=10s #success=1 #failure=3
Readiness: http-get https://:5000/healthz delay=0s timeout=5s period=10s #success=1 #failure=3
Environment:
REGISTRY_HTTP_ADDR: :5000
REGISTRY_HTTP_NET: tcp
REGISTRY_HTTP_SECRET: 4wwwdIkD5sKc/AcAQ76BuNaOWF13MvkYge6ltjJobn0=
REGISTRY_MIDDLEWARE_REPOSITORY_OPENSHIFT_ENFORCEQUOTA: false
REGISTRY_HTTP_TLS_KEY: /etc/secrets/registry.key
REGISTRY_HTTP_TLS_CERTIFICATE: /etc/secrets/registry.crt
Mounts:
/etc/secrets from registry-certificates (rw)
/registry from registry-storage (rw)
Volumes:
registry-storage:
Type: PersistentVolumeClaim (a reference to a PersistentVolumeClaim in the same namespace)
ClaimName: registry-claim
ReadOnly: false
registry-certificates:
Type: Secret (a volume populated by a Secret)
SecretName: registry-certificates
Optional: false
Deployment #2 (latest):
Name: docker-registry-2
Created: 14 minutes ago
Status: Complete
Replicas: 3 current / 3 desired
Selector: deployment=docker-registry-2,deploymentconfig=docker-registry,docker-registry=default
Labels: docker-registry=default,openshift.io/deployment-config.name=docker-registry
Pods Status: 3 Running / 0 Waiting / 0 Succeeded / 0 Failed
Deployment #1:
Created: 42 minutes ago
Status: Complete
Replicas: 0 current / 0 desired
Events:
FirstSeen LastSeen Count From SubObjectPath Type Reason Message
--------- -------- ----- ---- ------------- -------- ------ -------
42m 42m 1 deploymentconfig-controller Normal DeploymentCreated Created new replication controller "docker-registry-1" for version 1
14m 14m 1 deploymentconfig-controller Normal DeploymentCreated Created new replication controller "docker-registry-2" for version 2
14m 14m 1 deploymentconfig-controller Normal ReplicationControllerScaled Scaled replication controller "docker-registry-1" from 842477907952 to 3
While the exact output will be different for you it is easy to tell the registry pods are configured to mount a PersistentVolume associated with the PersistentVolumeClaim named registry-claim.
⇨ Verify this PVC exists:
oc get pvc/registry-claim
The PVC was automatically generated by openshift-ansible:
NAME STATUS VOLUME CAPACITY ACCESSMODES STORAGECLASS AGE registry-claim Bound registry-volume 5Gi RWX 23m
In the OpenShift UI you will see the new Registry configuration when you log on as operator and check the Overview page in the default namespace:
openshift-ansible generated an independent set of GlusterFS pods, a separate instance of heketi and a separate StorageClass as well. These components were configured to use the infra-storage namespace. Refer to Module 2 to get an understanding of those components if you just skipped to here.
⇨ Verify there are at least 3 GlusterFS pods and one heketi pod:
oc get pods -n infra-storage
There is now dedicated a CNS stack for OpenShift Infrastructure:
NAME READY STATUS RESTARTS AGE glusterfs-registry-1jct8 1/1 Running 0 33m glusterfs-registry-jp92q 1/1 Running 0 33m glusterfs-registry-x2kkm 1/1 Running 0 33m heketi-registry-1-k744l 1/1 Running 0 30m
With this you have successfully remediated a single point of failure from your OpenShift installation. Since this setup is entirely automated by openshift-ansible you can deploy out of the box an OpenShift environment capable of hosting stateful applications and operate a fault-tolerant registry. All this with no external dependencies or complicated integration of external storage :)
OpenShift Logging/Metrics on CNS#
OpenShift Logging (Kibana) and Metrics (Cassandra) are also components that require persistent storage. Typically so far external block storage providers had to be used in order to get these services to work reliably.
It might seem counter-intuitive at first to consider CNS to serve these systems, mainly because:
- Kibana and Cassandra are shared-nothing scale-out services
- CNS provides shared filesystem storage whereas for Kibana/Cassandra a block storage device formatted with a local filesystem like XFS would be enough
Here are a couple of reasons why it is still a good idea to run those on CNS:
- the total amount of storage available infra nodes is typically limited in capacity (CNS can scale beyond that)
- the storage type available in infra nodes is most likely not suitable for performant long-term operations of these services (CNS uses aggregate performance of multiple devices and hosts)
- without CNS some sort external storage system is required that requires additional manual configuration steps, in any case you should not use
emptyDir
Important
In the next couple of steps we will deploy Logging/Metrics on CNS. This is will be supported with the upcoming release of CNS 3.6 (early October 2017) in production. However the instructions will slightly vary because the PersistentVolumes will not be backed by a normal GlusterFS volume but by gluster-block to achieve high performance.
It will not be supported to run these services on standard gluster-fuse based CNS.
To review the required configuration sections in the openshift-ansible inventory file, open the standard inventory file /etc/ansible/hosts/ that was used to deploy this OCP cluster initially:
/etc/ansible/hosts:
[OSEv3:children] masters nodes [OSEv3:vars] deployment_type=openshift-enterprise containerized=true openshift_image_tag=v3.6.173.0.21 openshift_master_identity_providers=[{'name': 'htpasswd', 'login': 'true', 'challenge': 'true', 'kind': 'HTPasswdPasswordIdentityProvider', 'filename': '/etc/origin/master/htpasswd'}] openshift_master_htpasswd_users={'developer': '$apr1$bKWroIXS$/xjq07zVg9XtH6/VKuh6r/','operator': '$apr1$bKWroIXS$/xjq07zVg9XtH6/VKuh6r/'} openshift_master_default_subdomain='cloudapps.52.59.170.248.nip.io' openshift_router_selector='role=master' openshift_registry_selector='role=infra' openshift_metrics_install_metrics=false openshift_metrics_hawkular_hostname="hawkular-metrics.{{ openshift_master_default_subdomain }}" openshift_metrics_cassandra_storage_type=pv openshift_metrics_cassandra_pvc_size=10Gi openshift_hosted_logging_deploy=false openshift_logging_es_pvc_size=10Gi openshift_logging_es_pvc_dynamic=true [... output omitted... ]
The highlighted lines indicate the settings that are required in order to put the Cassandra database of the OpenShift Metrics service on a PersistentVolume (openshift_metrics_cassandra_storage_type=pv) and how large this volume should be (openshift_metrics_cassandra_pvc_size=10Gi).
Similarly the backend for the ElasticSearch component of OpenShift Logging is set to PersistentVolume (openshift_logging_es_pvc_dynamic=true) and the size is specifed (openshift_logging_es_pvc_size=10Gi).
With these settings in place openshift-ansible will request PVC object for these services.
Unfortunately openshift-ansible today is lacking the ability to specify a certain StorageClass with those PVCs, so we have to make the CNS cluster that was created above temporarily the system-wide default.
⇨ Login as operator to the openshift-infra namespace:
oc login -u operator -n openshift-infra
⇨ First, if you deployed the general-purpose CNS cluster in Module 2, you need to disable the other StorageClass glusterfs-storage from the other CNS stack as being the default:
oc patch storageclass glusterfs-storage \
-p '{"metadata": {"annotations": {"storageclass.kubernetes.io/is-default-class": "false"}}}'
⇨ Then, use the oc patch command again to change the definition of the StorageClass on the fly:
oc patch storageclass glusterfs-registry \
-p '{"metadata": {"annotations": {"storageclass.kubernetes.io/is-default-class": "true"}}}'
⇨ Verify that now the StorageClass glusterfs-registry is the default:
oc get storageclass
NAME TYPE
glusterfs-registry (default) kubernetes.io/glusterfs
glusterfs-storage kubernetes.io/glusterfs
Deploying OpenShift Metrics with Persistent Storage from CNS#
The inventory file /etc/ansible/hosts as explained has all the required options set to run Logging/Metrics on dynamic provisioned storage supplied via a PVC. The only variable that we need to override is (openshift_metrics_install_metrics) to actually invoke the required playbooks the installation.
⇨ Execute the Metrics deployment playbook like this:
ansible-playbook -i /etc/ansible/hosts \
-e openshift_metrics_install_metrics=True \
/usr/share/ansible/openshift-ansible/playbooks/byo/openshift-cluster/openshift-metrics.yml
This takes about 1-2 minutes to complete. However the deployment is not quite finished yet.

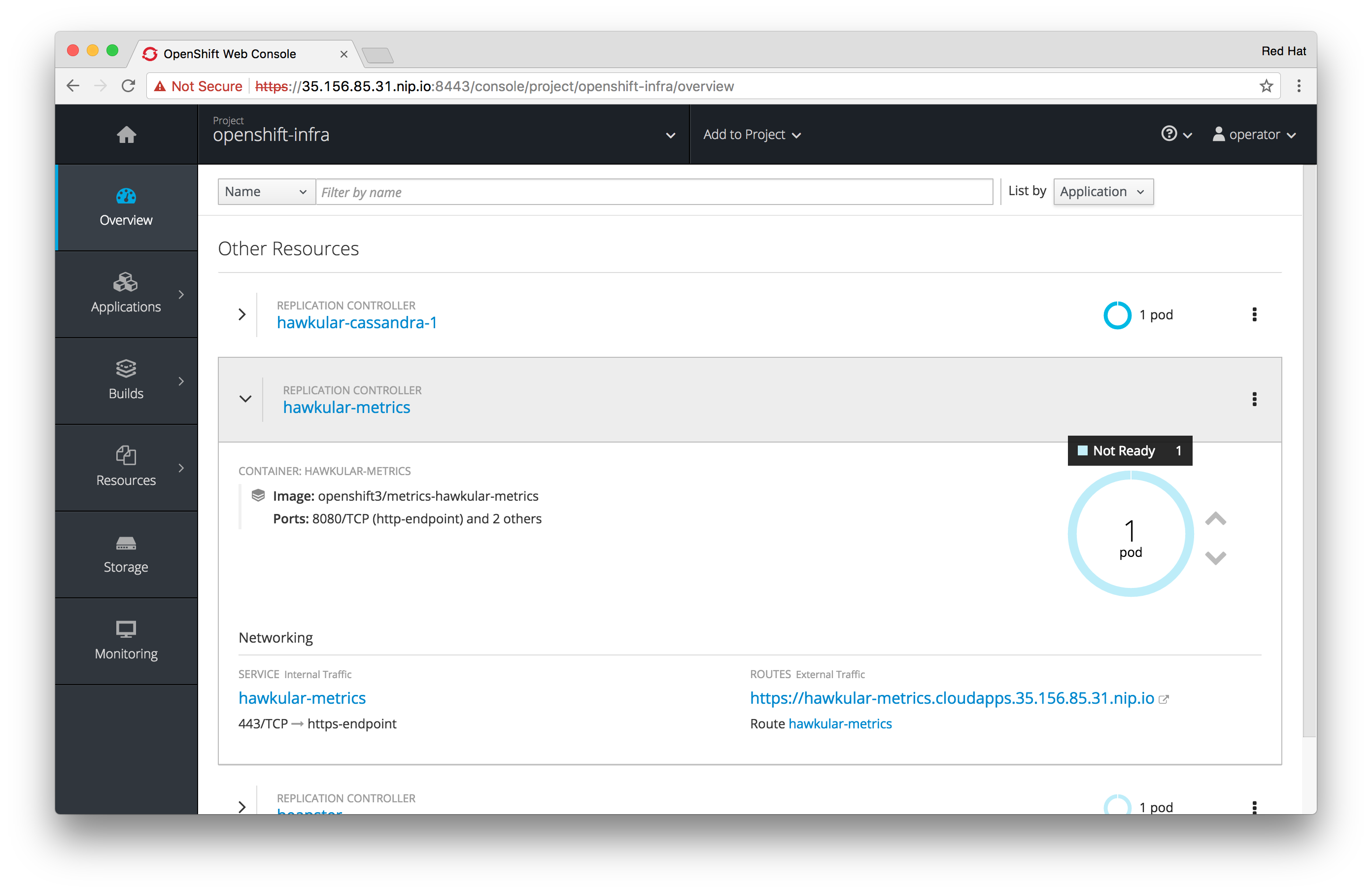

⇨ Use the watch command to wait for the hawkular-metrics pod to be in READY state.
watch oc get pods -l name=hawkular-metrics
Exit out of the watch mode with: Ctrl + c
It will be ready when the database (Cassandra) finished initializing. Alternatively in the UI observe the deployment in the Overview pane, focussing on the hawkular-metrics deployment:
After 2-3 minutes all 3 pods, that make up the OpenShift Metrics service, should be ready:
⇨ Verify all pods in the namespace have a 1/1 in the READY column:
oc get pods
NAME READY STATUS RESTARTS AGE hawkular-cassandra-1-sxctx 1/1 Running 0 5m hawkular-metrics-895xz 1/1 Running 0 5m heapster-pjxpp 1/1 Running 0 5m
To use the Metrics service you need to logon / reload the OpenShift UI in your browser. You will then see a warning message like this one:
Don’t worry - this is due to self-signed SSL certificates in this environment.

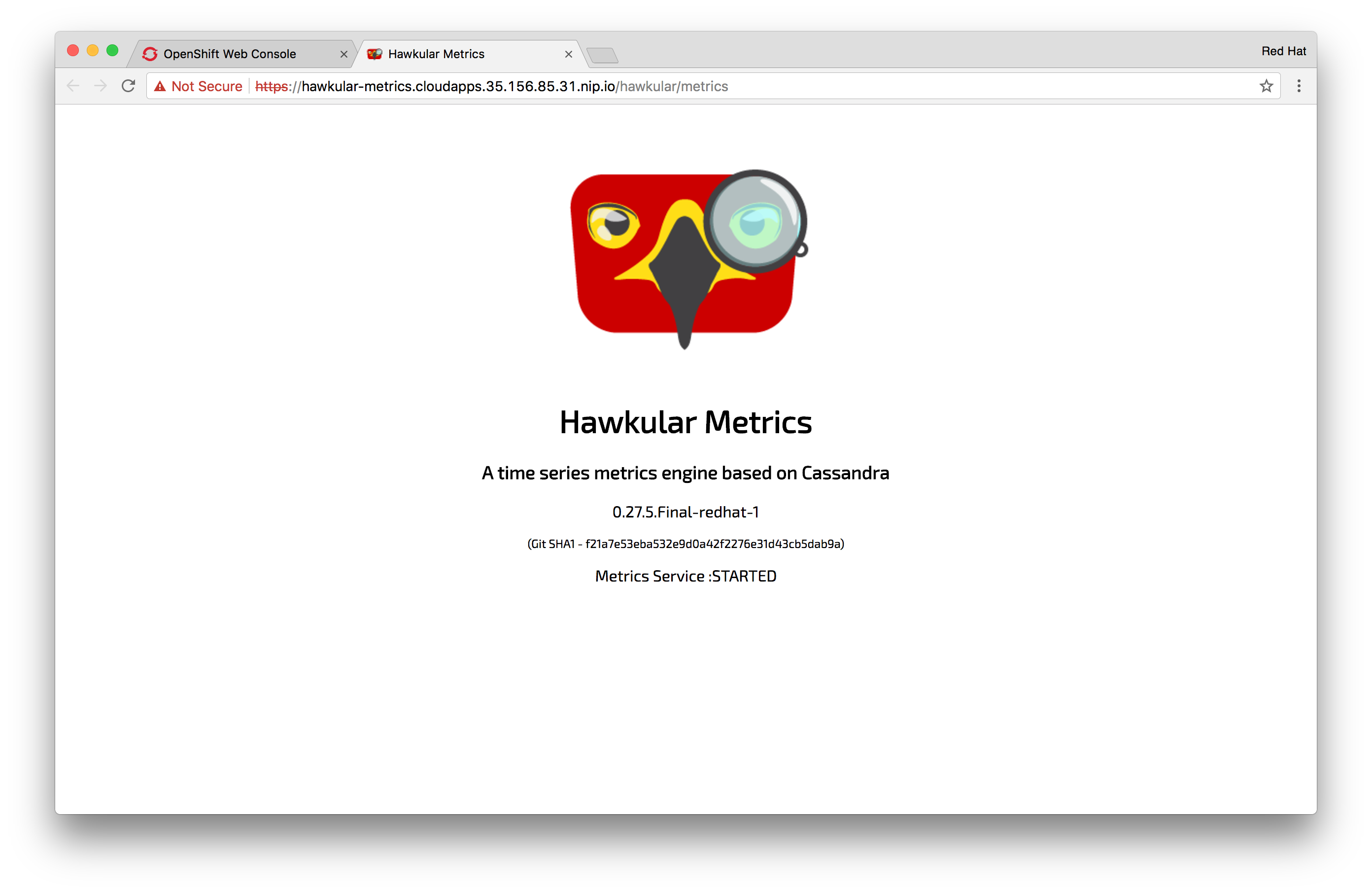

⇨ Click the Open Metrics URL link and accept the self-signed certificate in your new browser tab. You will see the status page of the OpenShift Hawkular Metrics component:

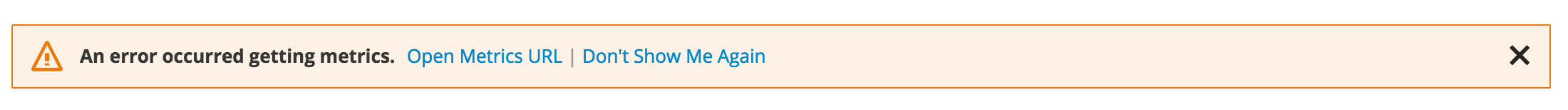

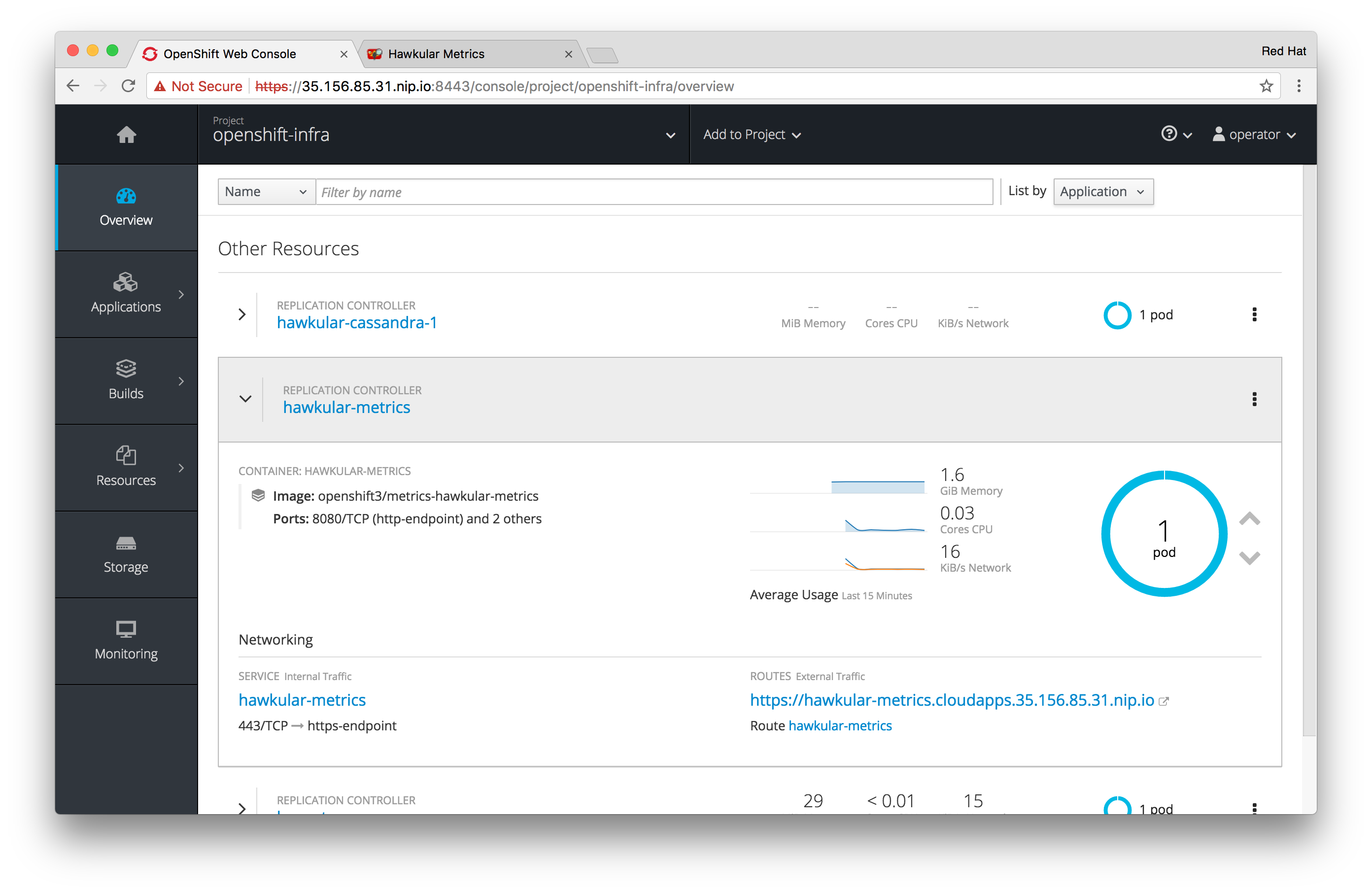

⇨ Then go back to the overview page. Next to the pods monitoring graphs for CPU, memory and network consumption will appear:

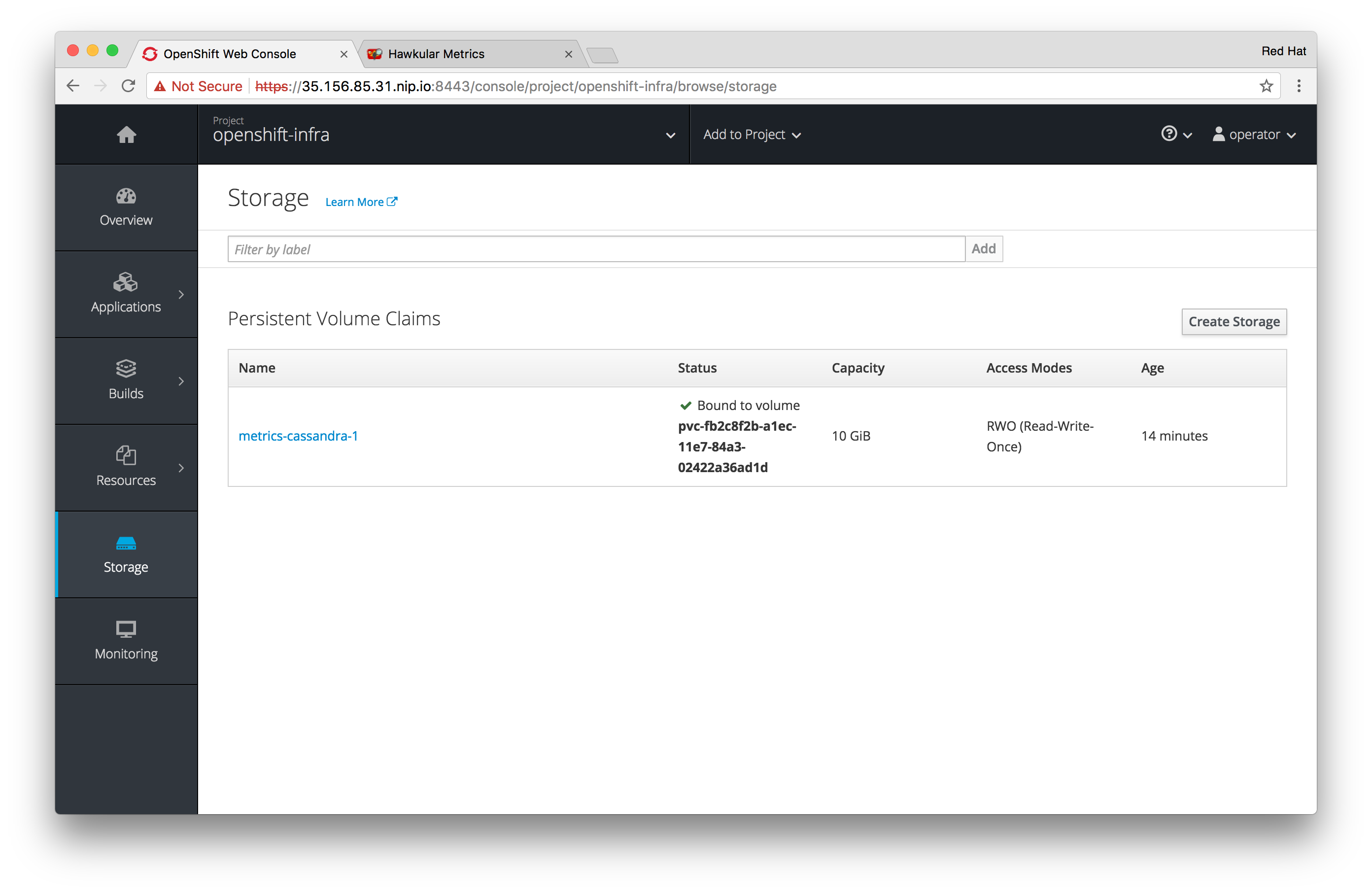

If you change to the Storage menu in the OpenShift UI you will also see the PVC that openshift-ansible has set up for the Cassandra pod.
Congratulations. You have successfully deploy OpenShift Metrics using scalable, fault-tolerant and persistent storage. The data that you see visualized in the UI is stored on a PersistentVolume served by CNS.
Preview
This was a preview of the general process. Note that this will be supported for production with the release of CNS 3.6.
Deploying OpenShift Logging with Persistent Storage from CNS#
In a very similar fashion you can install OpenShift Logging Services, run by Kibana and ElasticSearch.
⇨ As operator, login in to the logging namespace:
oc login -u operator -n logging
⇨ Execute the Logging deployment playbook like this:
ansible-playbook -i /etc/ansible/hosts \ -e openshift_hosted_logging_deploy=True \ /usr/share/ansible/openshift-ansible/playbooks/byo/openshift-cluster/openshift-logging.yml
After 1-2 minutes the playbook finishes and you have a number of new pods in the logging namespace:
⇨ List all the ElasticSearch pods that aggregate and store the logs:
oc get pods -l component=es
This pod runs a single ElasticSearch instance.
NAME READY STATUS RESTARTS AGE logging-es-data-master-kcbtgll3-1-vb34h 1/1 Running 0 11m
⇨ List the Kibana pod:
oc get pods -l component=kibana
This pod runs the Kibana front-end to query and search through logs:
NAME READY STATUS RESTARTS AGE logging-kibana-1-1c2dj 2/2 Running 0 11m
⇨ List all Fluentd pods:
oc get pods -l component=fluentd
These pods run as part of a DaemonSet and are responsible for collecting and shipping the various logs from all nodes to the ElasticSearch instance.
NAME READY STATUS RESTARTS AGE logging-fluentd-3k7nh 1/1 Running 0 5m logging-fluentd-473cf 1/1 Running 0 4m logging-fluentd-9kgsv 1/1 Running 0 5m logging-fluentd-h8fhb 1/1 Running 0 4m logging-fluentd-pb6h8 1/1 Running 0 4m logging-fluentd-q6lv4 1/1 Running 0 4m logging-fluentd-r455n 1/1 Running 0 4m logging-fluentd-v34ll 1/1 Running 0 5m logging-fluentd-vxnd3 1/1 Running 0 5m logging-fluentd-wf3lr 1/1 Running 0 5m

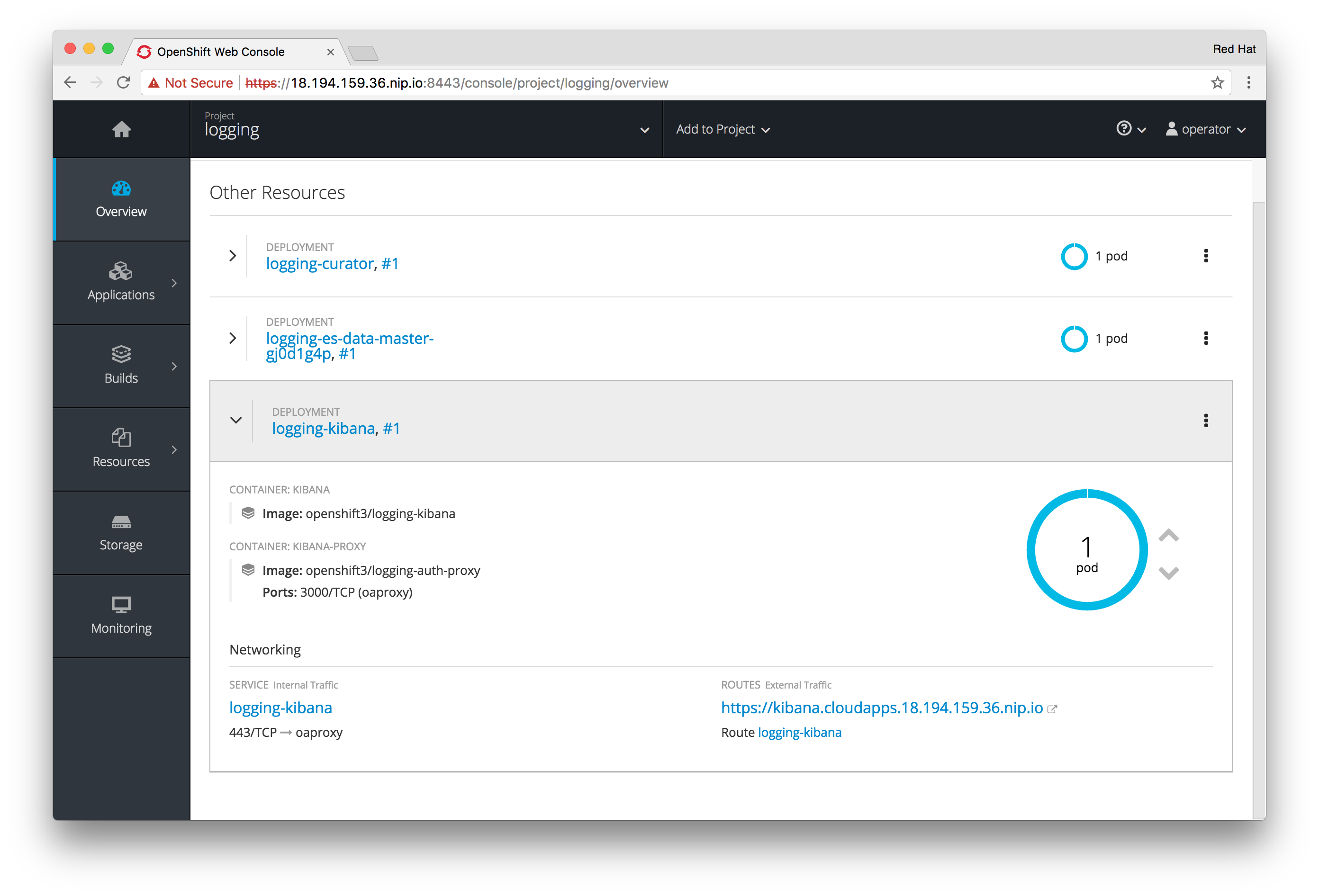

Switch to the OpenShift UI and as operator select the logging project. In the Overview section you’ll a Route for the Kibana deployment created. Click the link on the Route to open the Kibana UI in a new browser tab and verify the Kibana deployment is healthy.
The public URL for the Kibana UI will be visible in the ROUTES section of the logging-kibana deployment.
When you are logging on for the first time Kibana will ask for credentials.
Use your OpenShift operator account with the password r3dh4t.

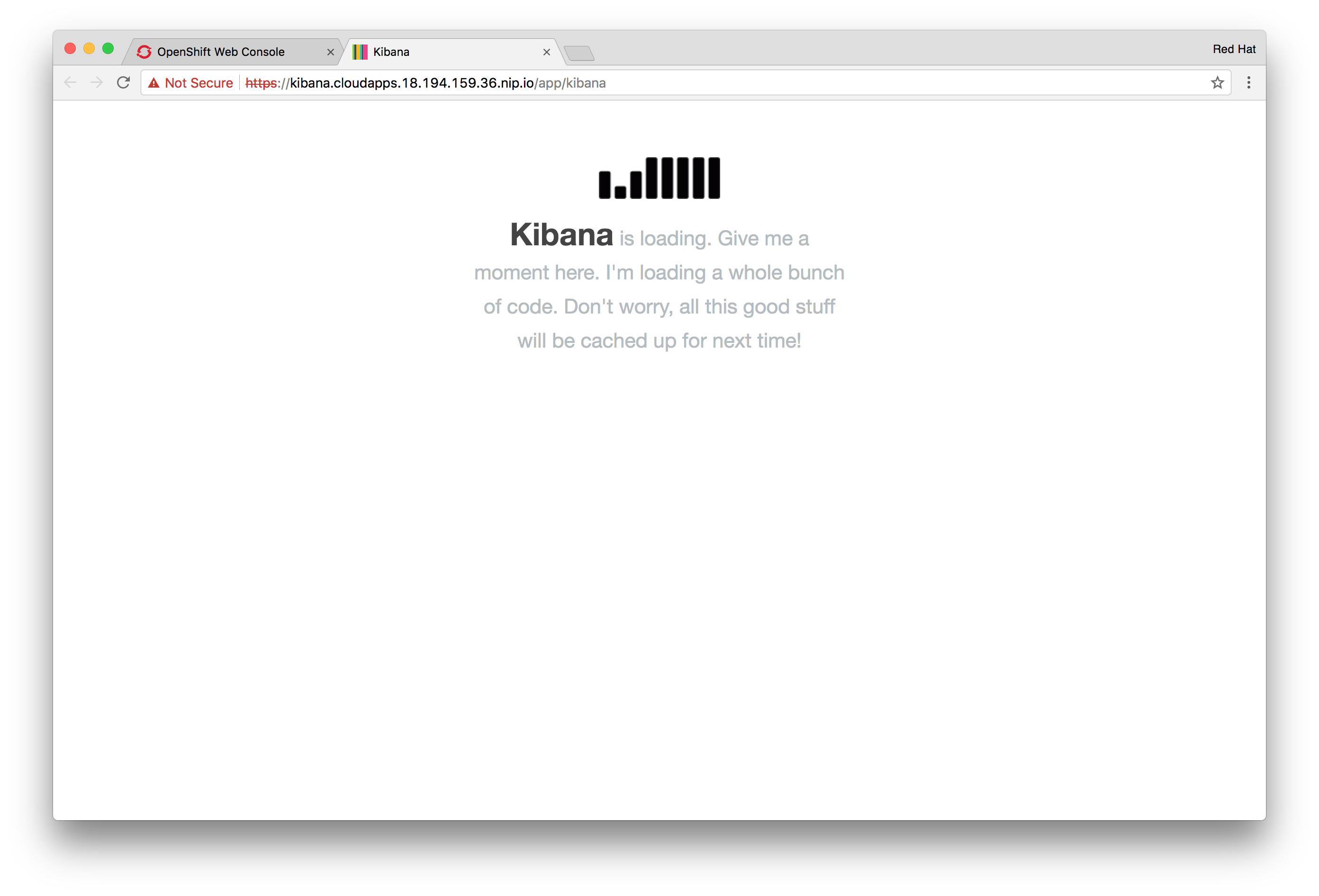

After logging in you will see that Kibana has started indexing the database, which is hosted on CNS by ElasticSearch.
This shows that ElasticSearch search running of CNS-provided PersistentVolume successfully. It will take some time to complete the first indexing.
